Harry PTFE Lining produces high-quality PTFE Lined Cross fittings for use in harsh industrial environments. We are a trustworthy FEP, PFA, and PTFE lined products producing and supplying company with our head office in Midland, UK. Our PTFE Lined Cross is designed to endure corrosive chemicals and heat with steady performance and extended service life. With great chemical resistance, strong construction and smooth internal surfaces, these fittings help guarantee proper flow distribution and can be provided in variable models based on various process requirements.

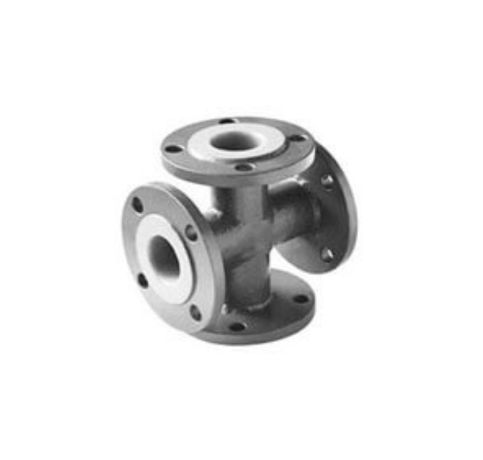

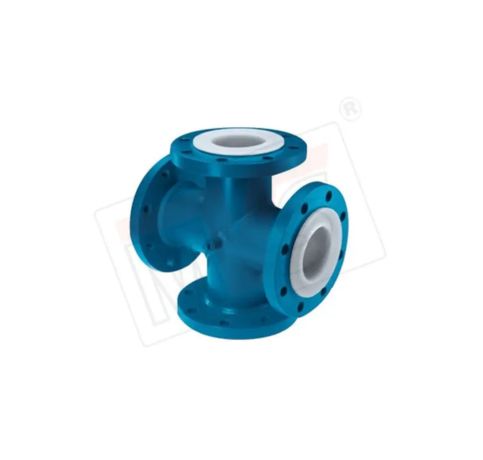

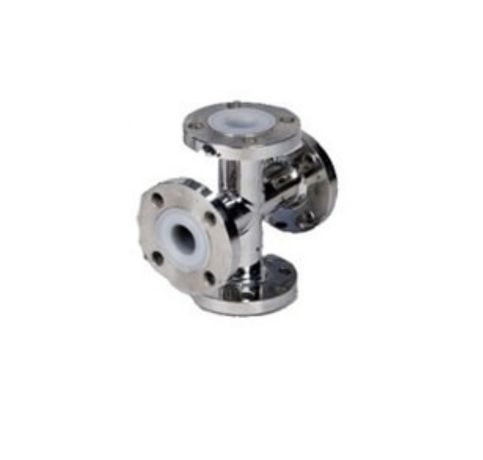

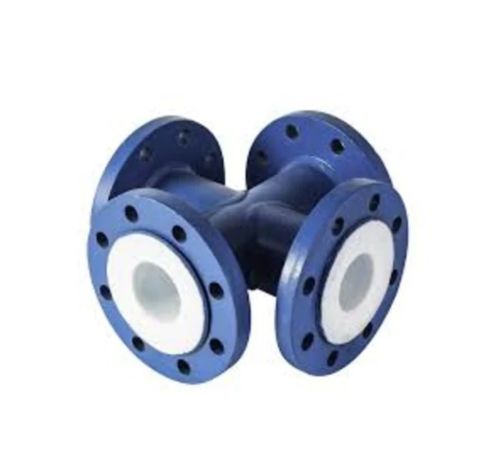

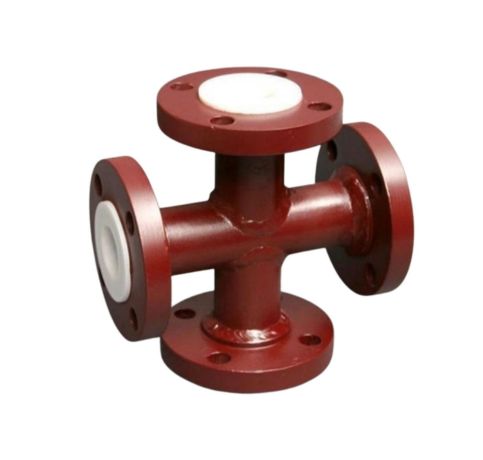

A PTFE Lined Cross is a four-way pipe fitting for cross-connection of pipelines in perpendicular directions and allows fluid flow in multiple directions. As it is lined with Polytetrafluoroethylene (PTFE) it offers excellent corrosion, heat, and chemical reaction resistance. This fitting is ideal to use in severe process environments where purity and endurance are of the utmost importance. Often used in petrochemical, pharmaceutical, and chemical industries, the PTFE Lined Cross offers smooth flow, leak-proof at a four-way intersection, guaranteeing controlled even distribution in complex piping systems.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C
PP Max Temp : 100° C
PFA Max Temp : 200° C
Harry PTFE Lining is a leading supplier of PTFE Lined Cross in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| CLASS – 150 # | ||||||||||
| NB | L | FLG. | RF | PCD | App. | App. | LINER THK | N x M | WEIGHTS | |
|---|---|---|---|---|---|---|---|---|---|---|
| O / D | O / D | T1 | T1 | Vaccume (T) | Non Vacc (T) | (kg/piece) | ||||
| 1/2″ | —- | 89 | 35.1 | 60.5 | 14.2 | 24.2 | 3.0 | 3.0 | 4 x 1/2″ | 4 |
| 3/4″ | —- | 98 | 42.9 | 69.9 | 15.7 | 27.7 | 3.0 | 3.0 | 4 x 1/2″ | 3.5 |
| 1″ | 89 | 108 | 50.8 | 79.2 | 17.2 | 29.2 | 4.0 | 3.0 | 4 x 1/2″ | 5.5 |
| 1 1/4″ | 95 | 118 | 63.5 | 88.9 | 18.7 | 30.2 | 4.0 | 3.0 | 4 x 1/2″ | 7.7 |
| 1 1/2″ | 102 | 127 | 73.2 | 98.6 | 20.5 | 32.5 | 4.0 | 3.0 | 4 x 1/2″ | 8.7 |
| 2″ | 114 | 152 | 91.9 | 120.7 | 22.1 | 37.1 | 4.0 | 3.0 | 4 x 1/2″ | 14.0 |
| 2 1/2″ | 127 | 178 | 104.6 | 139.7 | 25.4 | 40.4 | 4.0 | 3.0 | 4 x 5/8″ | 20.6 |
| 3″ | 140 | 191 | 127.0 | 152.4 | 27.9 | 42.9 | 4.0 | 3.0 | 4 x 5/8″ | 24.8 |
| 4″ | 165 | 229 | 157.2 | 190.5 | 28.9 | 43.9 | 4.5 | 3.0 | 8 x 5/8″ | 39.1 |
| 5″ | 190 | 254 | 185.7 | 215.9 | 28.9 | 43.9 | 6.0 | 5.0 | 8 x 3/4″ | 68.8 |
| 6″ | 203 | 279 | 215.9 | 241.3 | 30.4 | 45.4 | 6.0 | 5.0 | 8 x 3/4″ | 79.5 |
| 8″ | 229 | 343 | 269.7 | 298.5 | 33.4 | 48.4 | 6.0 | 5.0 | 8 x 3/4″ | 99.0 |
| 10″ | 280 | 406 | 323.9 | 362.0 | 35.7 | 50.7 | 7.5 | 5.0 | 12 x 7/8″ | 160.0 |
| 12″ | 305 | 483 | 381.0 | 431.8 | 37.8 | 52.8 | 7.5 | 5.0 | 12 x 7/8″ | 280.0 |
Withstands harsh acids and solvents.
Prevents fluid leakage at joints.
Suitable for extreme process heat.
Tailored to fit system specifications.
A PTFE lined cross valve features a cross-shaped design with PTFE lining, providing superior resistance to corrosion and chemical damage in piping systems.
They are commonly used in industries such as chemicals, pharmaceuticals, food processing, and water treatment to manage flow in multiple directions
PTFE lining offers excellent chemical resistance, ensures leak-free performance, reduces wear, and extends the valve’s operational life.
It allows the diversion or splitting of flow at four points in a pipe system, providing reliable, controlled flow management.
Yes, they are compatible with a wide range of aggressive acids, bases, solvents, and other harsh chemicals.
