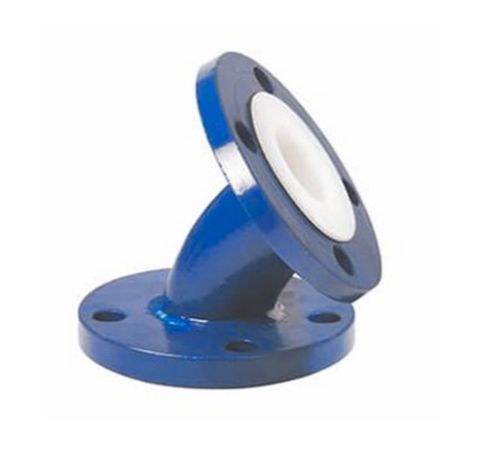

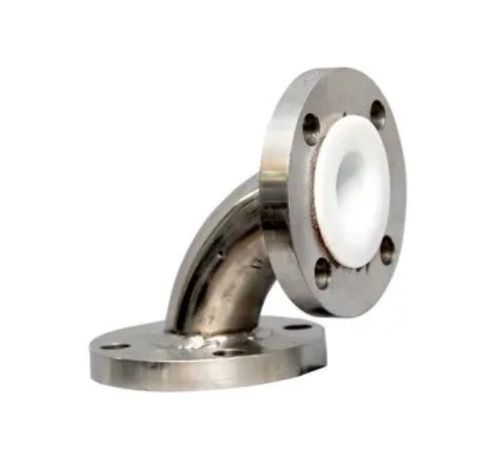

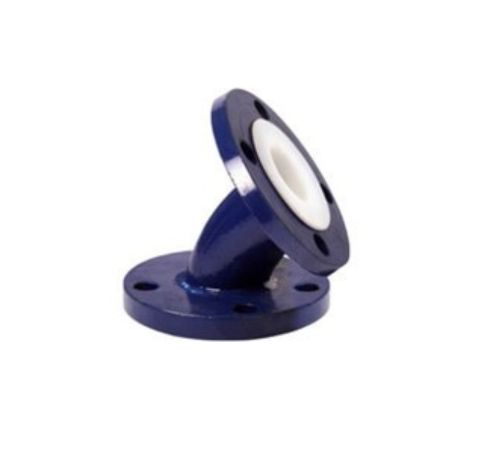

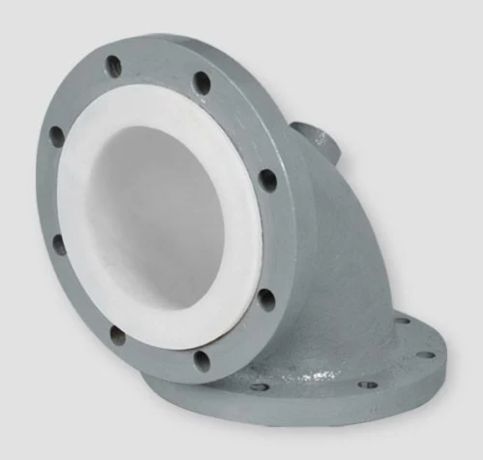

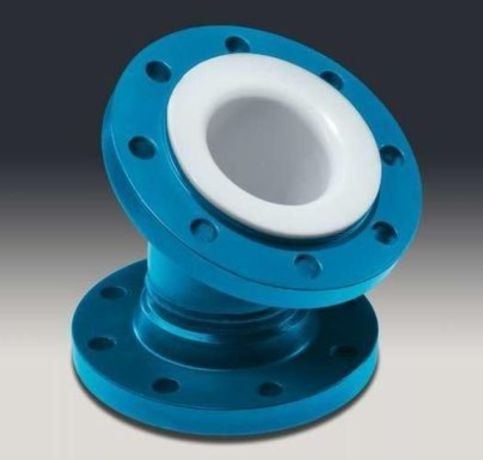

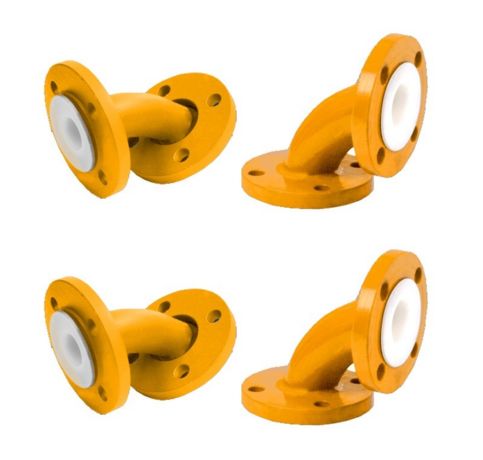

Harry PTFE Lining is a trustworthy manufacturer and exporter of PTFE, FEP and PFA lined elbows in UK. PTFE Lined Elbow designed to provide superior performance in highly corrosive and high-temperature environments. Both 90-degree and 45-degree versions are available, these elbows offer smooth changes in direction in flow with great chemical resistance and mechanical strength. Based in Midland, we manufacture long-lasting, precision-finished lined elbows to serve the challenging demands of industrial processes. Our internally fabricated solutions ensure consistent, leak-free operation even under extreme process conditions.
A PTFE lined elbow is a pipe fitting to guide the fluid flow in piping systems transporting corrosive or high-purity fluids. It is made of a carbon steel or stainless steel outer body with a PTFE (Polytetrafluoroethylene) internal lining, which exhibits excellent chemical resistance and non-stick properties. PTFE lined elbows are widely utilized in chemical processing, pharmaceutical, food and beverage, and water treatment plants. They offer smooth flow, resistance to contamination, and corrosion resistance at abusive chemical exposure and also at elevated temperatures.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Harry PTFE Lining is a leading supplier of PTFE Lined Elbow in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
|
NB
|
ID
|
RF
|
OD
|
PCD
|
No.Of Holes x Dia Of Holes
|
Lining Thickness Standard
|
Lining Thickness Full Vacuum
|
Length Max.
|
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
It’s a pipe elbow (typically 45° or 90°) internally coated with PTFE to provide excellent chemical resistance and smooth flow for corrosive or pure fluids.
Standard sizes typically range from 1″ to 12″, but custom sizes can be manufactured based on project needs.
Yes, they can withstand temperatures up to 230°C, depending on the pressure and application requirements.
Yes, they usually handle temperatures from -20°C up to around +200°C, depending on design and pressure.
Yes, we provide custom sizes, angles, and lining thickness based on your system design and performance needs.

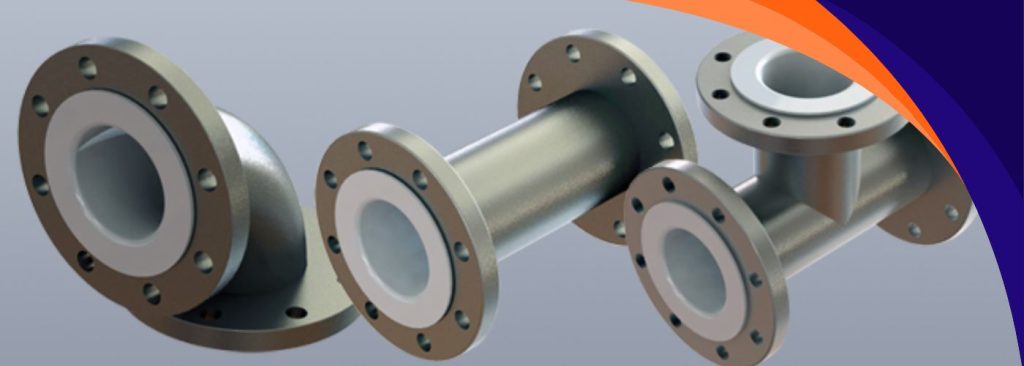

We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Midland, Uk.
