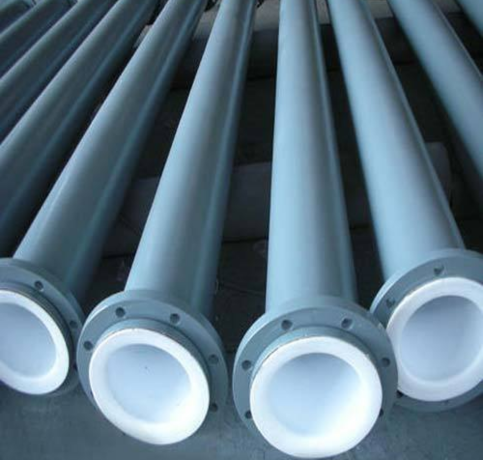

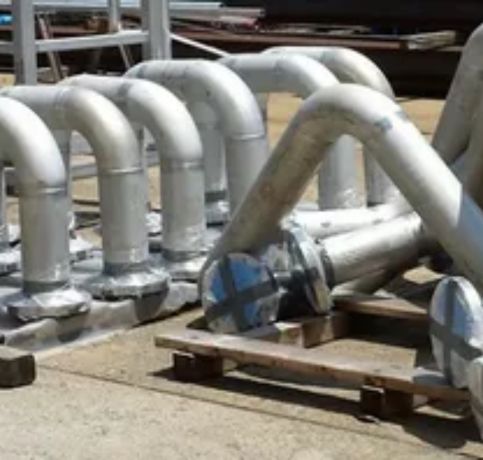

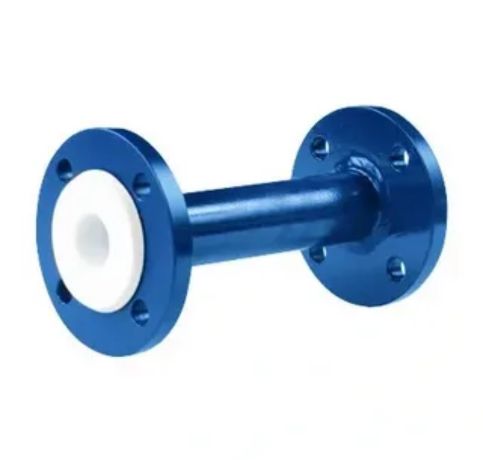

Being a leader company in the UK industry, we are specialized in the production of high-quality PTFE, FEP, and PFA lined flanged pipe spools and lined pipe spools. A pipe spool is pre-fabricated piping system segment consisting of pipes, flanges, and fittings, created as a ready-to-install unit. This technique facilitates easy on-site installation and reduces construction time. PTFE-coated spools are particularly recognized for their exceptional corrosion resistance, inertness to chemicals, and low-turbulence flow and are therefore ideally qualified to cope with aggressive media. Principal benefits are reduced maintenance, extended service life, and compatibility with wide spectrums of chemicals. Our unique manufacturing process allows precise matching to project conditions to provide high quality and accurate fit. Chemical processing, oil & gas, water treatment, and pharma industries strongly make use of the application of PTFE-lined pipe spools in the UK.
A PTFE-lined pipe spool is a piping section with an internal lining of Polytetrafluoroethylene (PTFE), a very inert and non-reactive fluoropolymer. It has the mechanical strength of steel and the chemical resistance of PTFE, making it suitable for conveying corrosive or toxic chemicals. The PTFE lining offers resistance against metal corrosion, smooth passage of the fluid, and is capable of withstanding high temperatures and aggressive media. These spools are pre-assembled for easy installation and find widespread use in such industries as pharmaceuticals, petrochemicals, chemicals, and water treatment where purity and corrosion resistance are crucial. They facilitate system life extension as well as reduced maintenance needs.
Harry PTFE Lining is a leading supplier of PTFE Lined Pipe spool in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Nominal Bore | Internal Dia. (d) | PTFE Liner Thickness (t) | FLANGE P. C. D | Flange Hole Dia. | Raised | Max.Length | Pipe Schedule | |
|---|---|---|---|---|---|---|---|---|
| mm | Inches | (± 1 mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 |
PTFE lining protects the pipe spool from highly corrosive chemicals, acids, and solvents, extending the system’s lifespan.
Reduces friction, prevents buildup, and ensures consistent flow of media, even with sticky or aggressive substances.
Performs reliably under a broad range of temperatures and pressures without degrading or reacting.
Minimizes the need for frequent inspections, repairs, and replacements, lowering operating costs.
A PTFE-lined pipe spool is a piping section with an internal lining of Polytetrafluoroethylene (PTFE), providing excellent corrosion resistance and smooth fluid flow
PTFE is highly inert, non-reactive, and resistant to a wide range of chemicals, making it ideal for handling corrosive, toxic, or aggressive fluids.
They are commonly used in industries such as pharmaceuticals, petrochemicals, chemicals, and water treatment, where corrosion resistance and purity are critical.
Benefits include increased corrosion resistance, reduced maintenance, extended system life, and the ability to handle aggressive or high-temperature media.
Yes, PTFE-lined pipe spools are pre-assembled, making them ready for easy installation and reducing construction time.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Midland, Uk.
