Harry PTFE Lining, a prominent Midland, UK-based manufacturer of PTFE, FEP, and PFA Lined Valves, offers superior quality FEP/PFA Lined “Y” Type Strainers that meet national as well as international standards. The FEP/PFA Lined “Y” Type Strainer is so called due to its Y-shaped design, which is used to filter out big particles at the initial stage of flow. Such strainers are especially helpful for preventing solid contaminants from entering pipelines.
A PTFE Lined Y Type Strainer is a corrosion-resistant filter device used in pipes to remove solid impurities from fluids or gases. The Y-shaped component includes a mesh filter and has a PTFE (Polytetrafluoroethylene) chemical and heat-resistant internal lining. The strainer protects delicate devices like pumps and valves from being damaged by rubbish. Used extensively in petrochemical, pharmaceutical and chemical processes, it inhibits inefficient flow and extends the life of downstream equipment.
Size : 25 NB to 300 NB
Outer body : ASTM A 395 Gr 60-40-18
Flange Connection : ANSI B 16.5
Face to Face : ANSI B 16.10
Spark Test : 15 KVA
Hydro Test : at 29.8 kg/cm2
FEP- Max Temp : 180° C

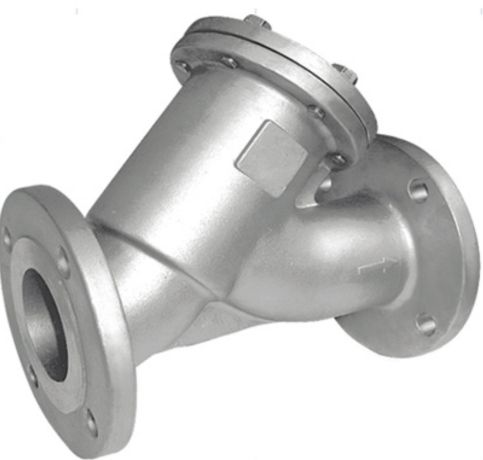

PP Max Temp : 100° C
PFA Max Temp : 200° C
Harry PTFE Lining is a leading supplier of PTFE Lined Y Type Strainer in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size(mm) | 25 | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Size(inch) | 1″ | 1½” | 2″ | 2½” | 3″ | 4″ | 6″ | 8″ |
| L | 190 | 260 | 284 | 305 | 348 | 415 | 508 | 650 |
| Ød | 25 | 38 | 50 | 65 | 75 | 100 | 150 | 200 |
| O.D. ØD | 110 | 125 | 150 | 180 | 190 | 230 | 280 | 345 |
| P.C.D. ØK | 79.2 | 98.5 | 120.6 | 139.7 | 152.4 | 190.5 | 241.3 | 298.4 |
| R.F.DIA. ØRF | 50.8 | 73.0 | 92.1 | 104.7 | 127.0 | 157.2 | 215.9 | 269.9 |
| No. OF HOLE N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 |
| HOLE DIA. ØH | 15.8 | 15.8 | 19 | 19 | 19 | 19 | 22.2 | 22.2 |
Effectively removes debris and particulates, protecting downstream equipment and improving system longevity.
Operates efficiently under high-temperature conditions without compromising material integrity or filtration performance.
PTFE lining adds durability, ensuring the strainer withstands harsh operational conditions for extended periods.
Requires less upkeep due to durable PTFE lining.
It’s a Y-shaped pipeline strainer with an internal PTFE lining, designed to filter out debris from corrosive or high-purity fluid systems.
They are used in chemical processing, pharmaceuticals, water treatment, food and beverage, and other industries requiring clean, contamination-free flow.
Yes, they are built for moderate to high temperatures and pressures, but specific limits depend on the manufacturer’s design specifications.
Cleaning frequency depends on fluid contamination levels, but regular inspections are recommended to maintain optimal flow and protect downstream equipment.
No, the PTFE lining is usually bonded during manufacturing and is not replaceable. If damaged, the entire strainer typically needs to be replaced.
