As the leading supplier of Teflon linings in the UK, we provide superior quality, durability, and service tailored to meet stringent industrial standards. Teflon lining involves applying a layer of PTFE coating to equipment, pipes, and fittings, offering exceptional resistance to highly corrosive and aggressive chemicals. With its non-stick, non-reactive properties, Teflon lining helps protect against damage, ensuring longer-lasting safety in harsh industrial environments. Industries such as chemical processing, pharmaceuticals, water treatment, oil & gas, and petrochemicals widely use Teflon-lined systems for handling acids, solvents, and other hazardous substances. Known for its outstanding chemical resistance, broad temperature tolerance, low friction, and non-contaminating nature, Teflon is ideal for aggressive media. It prevents corrosion, contamination, and material degradation while ensuring reliable performance with minimal maintenance. We offer customized Teflon lining solutions using various base metals, including Mild Steel (MS), Stainless Steel (SS), and Carbon Steel (CS), all engineered to meet specific client requirements,
Teflon-lined pipe is a metallic pipe internally lined with PTFE (Polytetrafluoroethylene) or simply called Teflon, which delivers superior chemical and corrosion resistance. The PTFE lining plays the role of a non-reactive barrier in between the pipe’s metallic surface and aggressive species like acids, solvents, or corrosive gases. Teflon-lined pipes find extensive application in process industries such as chemical processing, pharmaceuticals, oil & gas, and wastewater treatment, where purity and longevity are equally important. The non-stick, non-corrosive characteristics of Teflon combined with the strength of base metals like Mild Steel (MS), Stainless Steel (SS), or Carbon Steel (CS) provide secure and trouble-free fluid handling for extended periods.

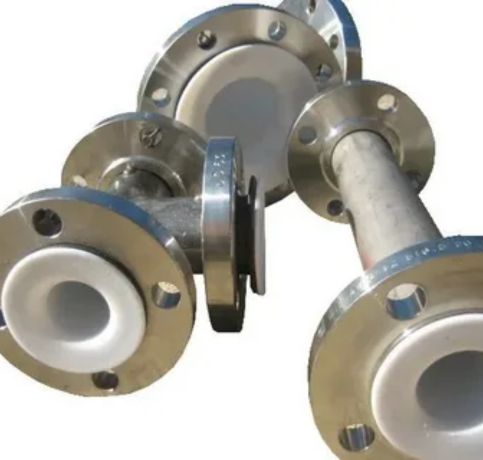

MS PTFE Telfon Lining is a leading supplier of SS PTFE Telfon Lined Pipes in Midland, UK, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Size (NB) | øA±1 | øB | øC | PCD | øE | G | No. of Holes | Holes Dia | Pipe THK. K | Liner THK. S | Face THK. H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 MM | 14 | 21 | 34.9 | 60.3 | 88.9 | 11.1 | 4 | 15.9 | 2.9 | 4 | 2.4 |
| 20 MM | 19.6 | 26.6 | 42.7 | 69.8 | 98.4 | 12.7 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 25 MM | 19.6 | 26.6 | 50.8 | 79.4 | 108 | 14.2 | 4 | 15.9 | 3.4 | 4 | 2.4 |
| 32 MM | 28.1 | 35.1 | 63.5 | 88.9 | 117.5 | 15.8 | 4 | 15.9 | 3.6 | 4 | 2.4 |
| 40 MM | 33.9 | 40.9 | 73 | 98.4 | 127 | 17.5 | 4 | 15.9 | 3.7 | 4 | 2.4 |
| 50 MM | 45.5 | 52.5 | 92.1 | 120.7 | 152.4 | 19.1 | 4 | 19 | 3.9 | 4 | 2.4 |
| 65 MM | 55.7 | 62.7 | 104.8 | 139.7 | 177.8 | 22.2 | 4 | 19 | 5.2 | 4 | 2.4 |
| 80 MM | 70.9 | 77.9 | 127 | 152.4 | 190.5 | 23.8 | 4 | 19 | 5.5 | 4 | 2.4 |
| 100 MM | 95.3 | 102.3 | 157.2 | 190.5 | 228.6 | 23.8 | 8 | 19 | 6 | 4 | 2.4 |
| 125 MM | 119.2 | 128.2 | 185.7 | 215.9 | 254 | 23.8 | 8 | 22.2 | 6.6 | 5 | 3.8 |
| 150 MM | 145.1 | 154.1 | 215.9 | 241.3 | 279.4 | 25.4 | 8 | 22.2 | 7.1 | 5 | 3.8 |
| 200 MM* | 197.4 | 206.4 | 269.9 | 298.5 | 342.9 | 28.6 | 8 | 22.2 | 6.35 | 5 | 3.8 |
| 250 MM* | 249.3 | 260.3 | 323.9 | 362 | 406.4 | 30.2 | 12 | 25.4 | 6.35 | 6 | 4 |
| 300 MM* | 300.1 | 311.1 | 381 | 431.8 | 482.6 | 31.8 | 12 | 25.4 | 6.35 | 6 | 4 |
| 350 MM* | 328.7 | 339.7 | 412.8 | 476.3 | 533.4 | 34.9 | 12 | 28.6 | 7.92 | 6 | 4 |
| 400 MM* | 379.5 | 390.5 | 469.9 | 539.8 | 596.9 | 36.5 | 16 | 28.6 | 7.92 | 6 | 4 |
| 450 MM* | 429.3 | 441.3 | 533.4 | 577.9 | 635 | 39.7 | 16 | 31.8 | 7.92 | 6.5 | 4.4 |
| 500 MM* | 475.9 | 488.9 | 584.2 | 635 | 698.5 | 42.9 | 20 | 32 | 9.52 | 7 | 4.8 |
| 600 MM* | 575.9 | 590.5 | 692.2 | 749.3 | 812.6 | 47.6 | 20 | 35 | 9.52 | 8 | 5.6 |
| 700 MM | 685.1 | 692.1 | 801.6 | 863.6 | 827.1 | 50 | 28 | 35 | 9.52 | 4 | 2.4 |
| 800 MM | 786.7 | 793.7 | 916.2 | 977.9 | 1060.4 | 50 | 28 | 41.3 | 9.52 | 4 | 2.4 |
Teflon (PTFE) resists a wide range of corrosive chemicals, acids, and solvents, making it ideal for harsh industrial environments.
The smooth, non-stick inner surface reduces flow resistance, prevents buildup, and improves fluid efficiency.
Teflon performs reliably across a wide temperature range (typically -20°C to +200°C), maintaining integrity under thermal stress.
PTFE lining is non-reactive and inert, ensuring purity of media—critical for pharmaceuticals, food, and high-purity chemical applications.
A Teflon lined pipe is a metal pipe internally coated with PTFE, offering high resistance to corrosion, chemicals, and heat, ideal for safely transporting aggressive or reactive fluids.
They are widely used in industries like chemical processing, pharmaceuticals, oil & gas, food & beverage, and wastewater treatment, where corrosive or reactive fluids are handled.
Teflon provides excellent chemical resistance, non-stick properties, low friction, and thermal stability, making it ideal for transporting aggressive or high-purity media.
Common base metals include Mild Steel (MS), Stainless Steel (SS), and Carbon Steel (CS) depending on the application and mechanical strength required.
Teflon-lined pipes are highly durable and can last for many years, with minimal maintenance, depending on the conditions they are exposed to.
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Midland, Uk.
